Step-by-Step Guide: Constructing a Radar Plot in Microsoft Excel

Quick Links

• The Sample Data
• Create a Radar Chart in Excel
• Create a Filled Radar Chart

A radar chart compares the values of three or more variables relative to a central point. It’s useful when you cannot directly compare the variables and is especially great for visualizing performance analysis or survey data.

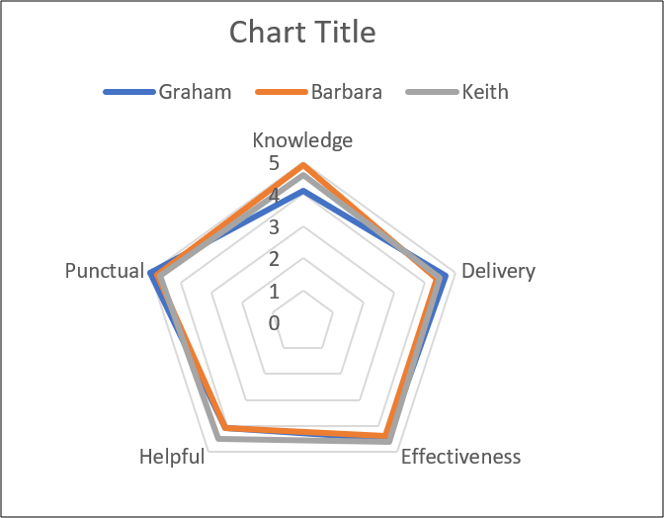

Here’s a sample radar chart, so you can see what we’re talking about. It’s likely you’ve run across them before, even if you didn’t know that’s what they were.

Creating Radar Charts in Excel is straightforward. In this article, we’ll show you how to create two types of Radar Chart: a regular chart (like the one above) and a filled chart (like the one below, which fills in the areas instead of just showing the outlines).

The Sample Data

Let’s first take a look at the sample data we’ll be using for our examples.

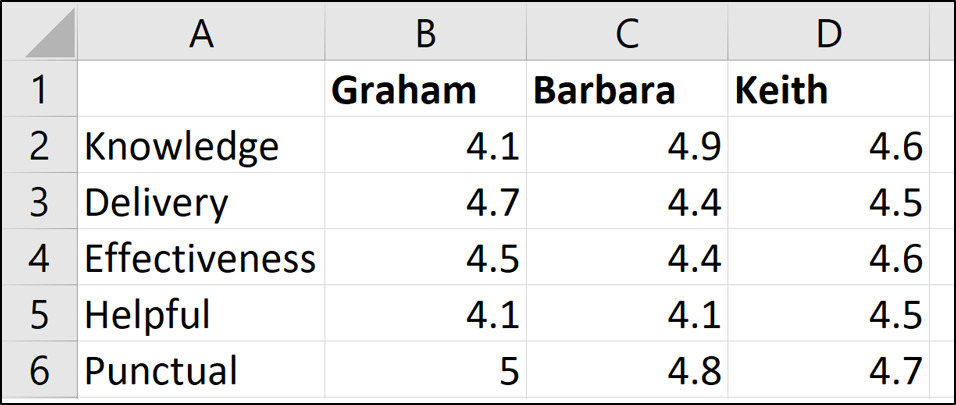

We have three trainers: Graham, Barbara, and Keith. We’ve assessed them in five different categories (Knowledge, Delivery, and so on) and our Excel table contains those ratings.

WinUtilities Pro

Create a Radar Chart in Excel

In this first example, we will create a Radar Chart that shows the assessment of all three trainers.

Select all the cells, including the row that contains the names and the column that contains the assessment titles. Switch to the “Insert” tab and then click the “Waterfall Chart” button.

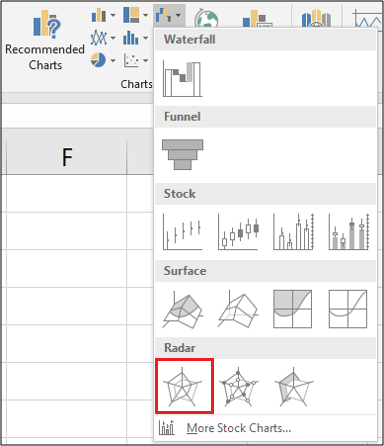

You can choose from three Radar Charts from which to pick. Choose the first Radar Chart option for this example. (The second option just adds markers to the values on the lines; the third option fills the chart, and we’ll be looking at that one a bit later.)

Now that you’ve inserted the chart into the worksheet, you can begin to make some improvements to it.

Enter a Chart Title

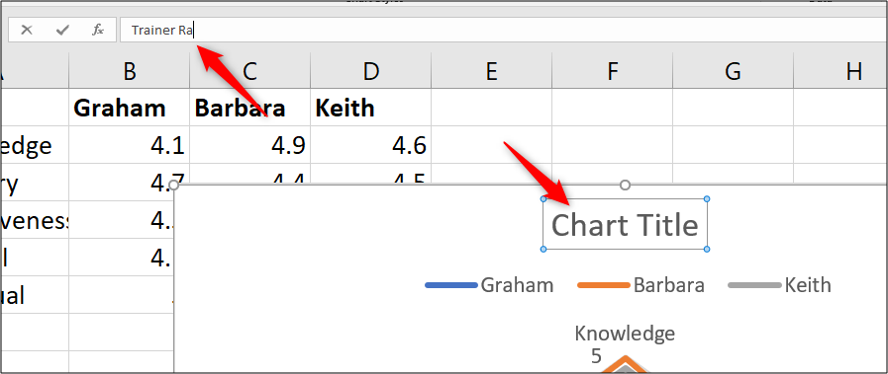

Select the chart title and then type a new title. As you type, the text will appear in the Formula Bar.

Click here

Move the Legend

For another change, we could move the legend from above the chart to the right.

When the chart is selected, you’ll see four buttons hovering at its top right. Click the “Chart Elements” button at the top, and then hover your mouse over the “Legend” option. You’ll see an arrow to the right. Click that and then click the “Right” option on the menu that appears.

PearlMountain Image Converter

Modify the Radar Chart Axis

To give our Radar chart a greater impact, and more data clarity, we will modify the axis to begin at three instead of zero.

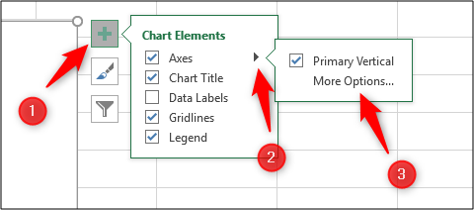

Click the “Chart Elements” button again, hover over the “Axes” option, click the arrow that appears next to it, and then select “More Options.”

The Format Axis pane appears on the right. We want to edit the “Minimum” setting under the “Bounds” section, so click that field and type “3” there.

The radar chart updates immediately and now that we’ve increased the minimum Bounds value, you can more clearly see the differences in the assessments of the three trainers.

This example gives us a nice view of which trainers excel at which qualities, and also how rounded their skill sets are.

Create a Filled Radar Chart

For a second example, we will create a filled radar chart for just one of the trainers. We will use Keith for this example.

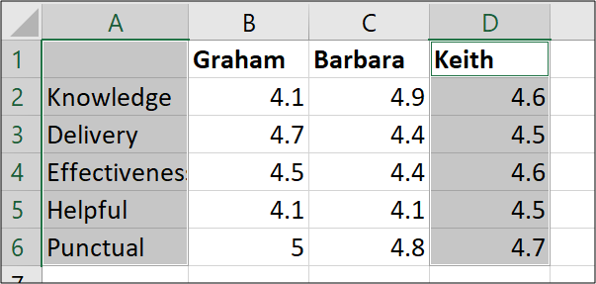

First, select the range of cells that you need. In our example, we want the range

    `A1:A6`

and the range

    `D1:D6`

as shown below. To do this, hold the Ctrl key while you select each additional cell you want to add to your selection.

Lyric Video Creator Professional Version

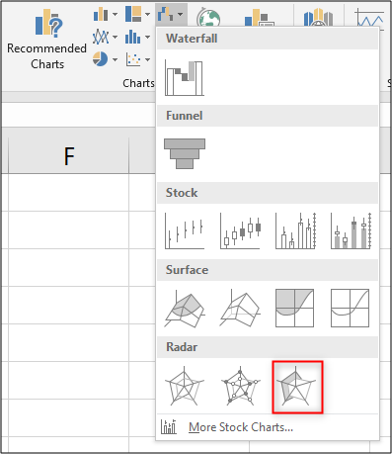

Now head to Insert > Waterfall Chart > Filled Radar.

EmEditor is a fast, lightweight, yet extensible, easy-to-use text editor, code editor, CSV editor, and large file viewer for Windows. Both native 64-bit and 32-bit builds are available, and moreover, the 64-bit includes separate builds for SSE2 (128-bit), AVX-2 (256-bit), and AVX-512 (512-bit) instruction sets. New versions support AI-assisted writing.

When you create a radar chart using only one data series, the axis does not start from zero the way it did in our previous example. Instead, the minimum bound will be the lowest number in the range of cells you selected. In our case, the minimum bound is 4.4—one tick below Keith’s minimum score.

This chart helps you visualize how strong Keith is in each of the assessed qualities.

Note that if we were creating more than one radar chart (like, say, we wanted to show a separate chart for each of our trainers), we would want to make sure the axis ranges are consistent so that the data presentation is not misleading. So, for example, we would set the minimum bound to be a bit below the lowest ranking of any trainer and the maximum bound to be a bit higher than the highest ranking of any trainer. You could even remove the axis itself to reduce clutter on the chart.

Creating radar charts in Excel is simple, but getting the most out of them can require some extra attention. They can be a useful addition to your Excel reports in the future.
